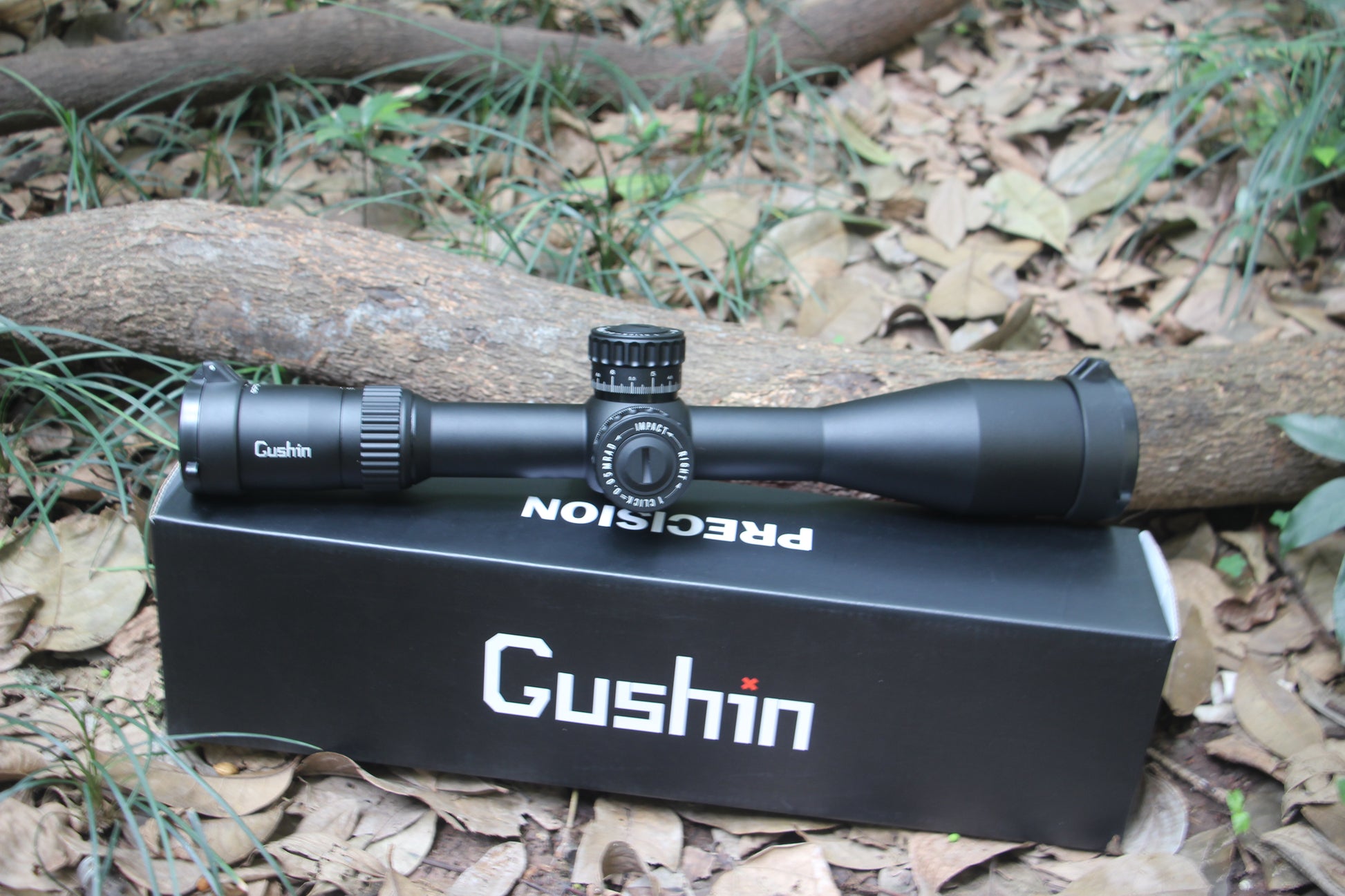

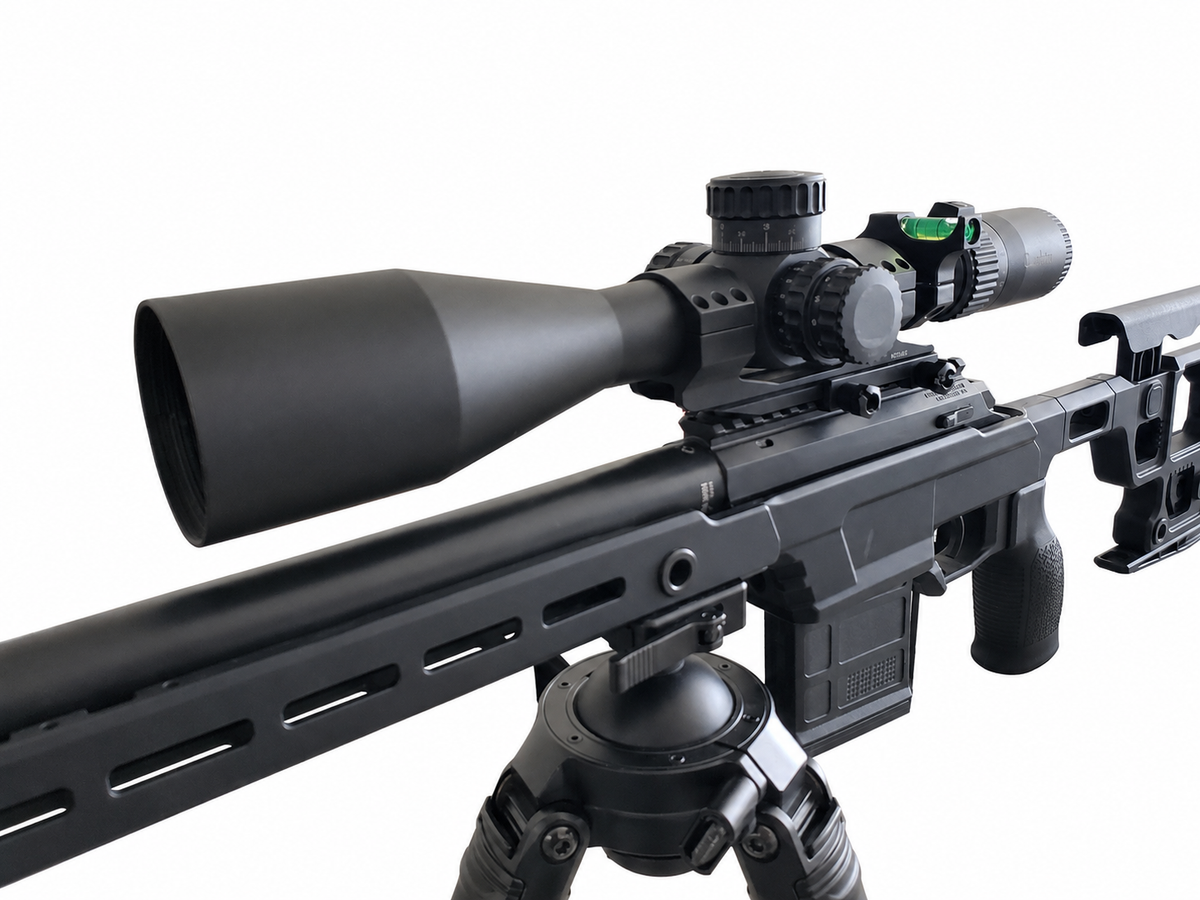

5-45x56 ED FFP Zero Stop - 34mm Tube, 0.05 Mrad 140 Clicks Per Turn
5-45x56 ED FFP Zero Stop - 34mm Tube, 0.05 Mrad 140 Clicks Per Turn
Out of stock
Couldn't load pickup availability
Life Time Warranty
Japanese Glasses
MIL-STD 810G Standard

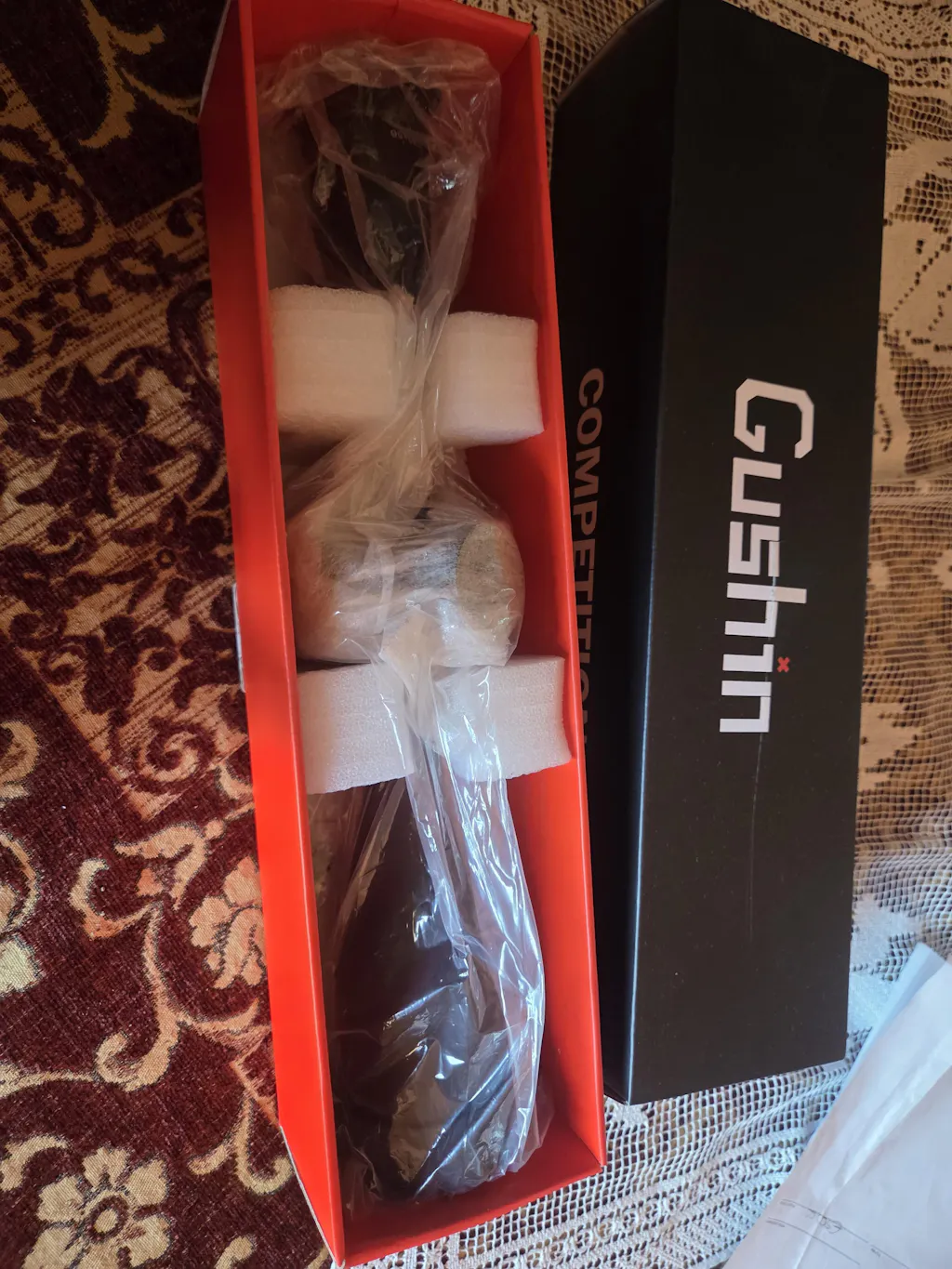

Packing List:
- Gushin 5-45X56 FFP Scope *1
- Flip-Up Lens Caps * 2
- Sunshade *1
- Cleaning Cloth *1
- Turret Adjustment Tool *1
Environmental Commitment & Usage Precondition
TECH SHEET
TECHNICAL SPECIFICATIONS
RETICLE
2. Technical Subtensions
| ID | Angular Value (mrad) | Physical Value (mm @100 m) | Description |
|---|---|---|---|
| A | 0.022 mrad | 0.006 mm | Fine center line thickness |
| B | 0.8 mrad | 0.216 mm | Distance from center to first horizontal reference bar |
| C | 1.0 mrad | 0.270 mm | Standard spacing between primary marks |
| D | 0.1 mrad | 0.027 mm | Minor division spacing |
| E | 0.4 mrad | 0.108 mm | Major grid spacing in tree |
| F | 0.2 mrad | 0.054 mm | Fine sub-tension (between dots) |
| G | Ø 0.04 mrad | Ø 0.0108 mm | Central dot diameter |
| H | 0.6 mrad | 0.162 mm | Mid-range interval spacing |
| I | 0.5 mrad | 0.135 mm | Lateral grid spacing beyond 6 mrad |
| J | 0.035 mrad | 0.0094 mm | Reticle line thickness (main grid) |
| K | 0.3 mrad | 0.081 mm | Windage tick spacing in lower grid |
| L | Ø 0.1 mrad | Ø 0.027 mm | Large cross dots (range marks) |
| M | Ø 0.06 mrad | Ø 0.016 mm | Small dots between large cross marks |
| N | 0.15 mrad | 0.040 mm | Bottom tree line spacing |
Youtube Review
See what experts are saying about our products
Sendit Armory
A "MONSTER" OF AN OPTIC AT A TRULY INCREDIBLE PRICE? THE 5-45 X 56 FFP Gushin Optics.
Tactical Raiders Shooting
Gushin Optics Test Outdoor - LVDRINIVM COETVS 2026
Sendit Armory
TIKKA ACE TARGET 6.5 CREEDMOOR + GUSHIN 7-35 X 56? ... BOOM !!!
Constant Eye Relief Advantages
Experience consistent comfort and performance across all magnification levels
Stable, repeatable cheek weld
Your consistent shooting cheek position does not require adjustment when switching magnification during a stage. Critical for PRS and multi-distance match courses where targets demand rapid zoom changes
Eliminates scope bite risk
Fixed eye relief removes unexpected backward shifts at high magnification. You avoid painful recoil-related ocular impact even with powerful centerfire platforms.
Uninterrupted full field of view
No vignetting or partial black ring around the sight picture after zooming. Instant full-view visibility every time you acquire the target.
Faster target acquisition
You maintain the same head position throughout variable zoom. Less wasted movement translates to quicker follow-up shots and faster engagement of multi-range targets.
Why Shooters Actually Need 0.05 MRAD?

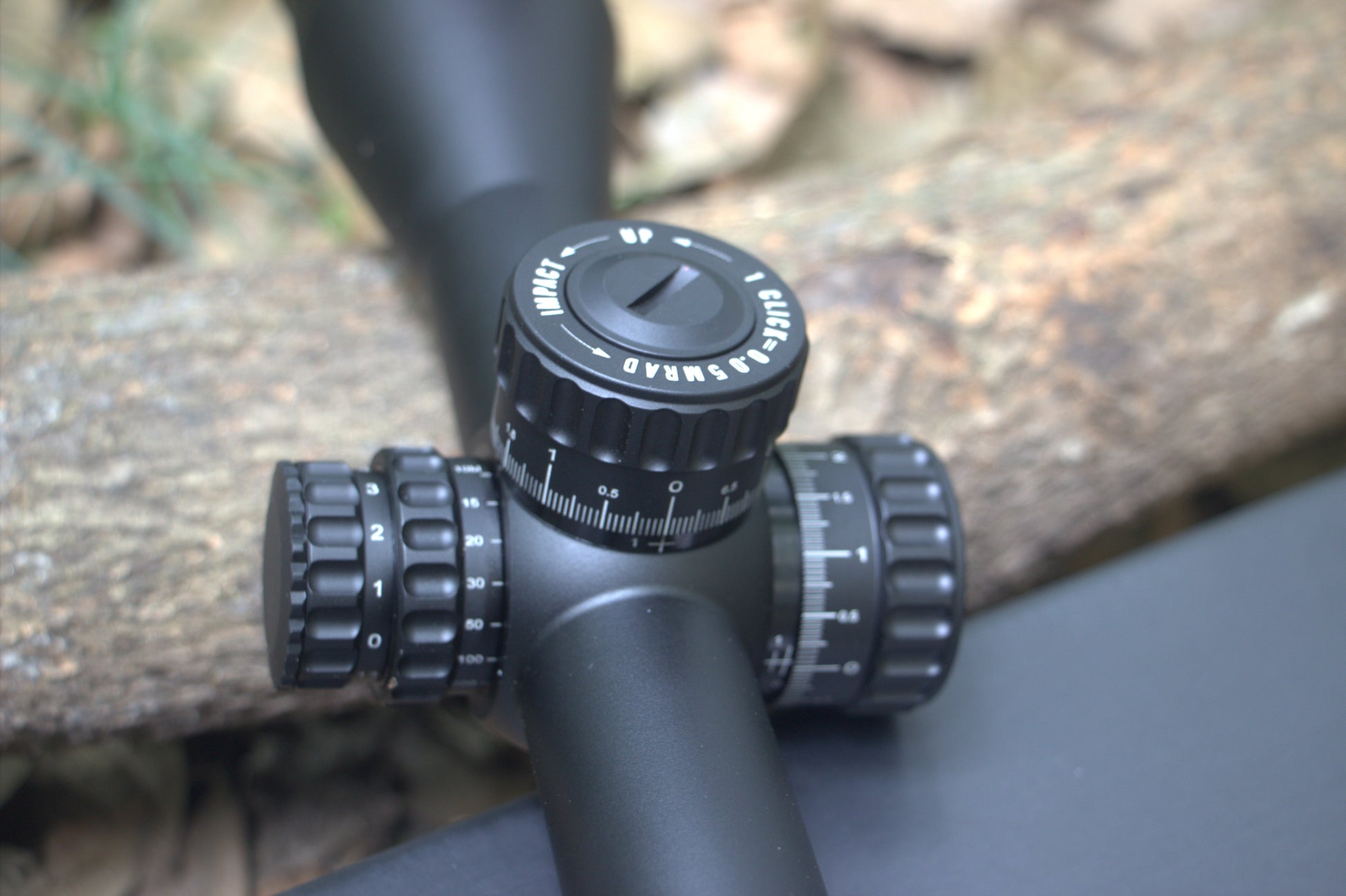

Ultra-Fine 0.05 MRAD Per-Click Adjustment
Many precision riflescopes utilise 0.1 MRAD turret increments. Our 0.05 MRAD tuning delivers twice the adjustment resolution. 0.1 MRAD = one single click shifts point of impact 0.1 milliradian. 0.05 MRAD = each click moves impact by just 0.05 milliradian, enabling micro ballistic correction unavailable on coarser turret systems.
Precise Micro-Correction for Wind & Atmospheric Variables
Long-range wind seldom arrives in large, neat 0.1 MRAD increments. 0.05 MRAD steps let you dial half-value wind adjustments for subtle light crosswinds, temperature shifts, minor muzzle velocity variance. With 0.1 MRAD turrets, you are forced to over-correct or under-correct between clicks.
Superior Precision for Small Target Apertures
In PRS / DMR matches, tiny steel targets at extended distance demand granular tuning. Finer increments minimise aiming error when engaging minimal target hit zones.
Compatible With Standard MRAD Reticle Ranging Logic
All etched MRAD reticles mark in 0.1 MRAD intervals. 0.05 MRAD clicks perfectly align for half-increment holdover conversion. You can dial exactly halfway between two reticle lines without compromise.
Work alongside your 140-Click total elevation travel
Paired with our 140-click elevation travel (±3.5 MRAD usable range), you gain both wide ballistic correction capacity AND ultra-fine tuning. Critical distinction: Total click travel = maximum adjustment range; per-click value = how accurately you can tune within that range. 0.05MRAD + 140 clicks = you have long-distance dial capability and delicate precision at every distance.
Application Scenario Comparison
0.1 MRAD adjustments remain suitable for hunting and general recreational shooting with larger target zones. For competitive precision match shooters prioritising every possible advantage, 0.05 MRAD incremental tuning removes adjustment granularity limitations.
Zero Stop Ring (Removable Type) Setup Procedure
- Remove the Turret Cap
Unscrew or pull off the outer protective cap of the elevation turret, exposing the zero stop ring and its three retaining screws. - Remove the Zero Stop Ring
Using the supplied hex key (typically 1.5 mm or 2.5 mm), completely unscrew all three retaining screws (store them safely). Carefully lift the zero stop ring vertically off the turret base. The elevation turret now has no lower stop and can be rotated freely through its full range. - Perform Live-Fire Zeroing
With the ring removed, zero the riflescope at your intended distance (e.g., 100 yards) by adjusting the elevation turret as usual.
⚠️ Note: Since there is no lower mechanical stop, be cautious not to over‑rotate the turret beyond its internal travel limits. - Reinstall the Zero Stop Ring and Engage the Locking TeethOnce zeroed, keep the turret stationary – do not turn it further.Slip the zero stop ring back onto the turret base. Rotate the ring (while the turret remains fixed) until you feel a distinct click or resistance, and the ring can no longer be turned clockwise – this indicates that the internal stop teeth have fully engaged with the corresponding grooves on the base, mechanically locking the zero position. At this point, the “0” mark on the ring should align with the reference mark on the scope body (minor adjustments to the ring are acceptable as long as the teeth remain engaged).
- Tighten the Retaining Screws
Reinstall the three retaining screws and tighten them evenly (use a torque wrench if available; otherwise, apply moderate, uniform force to avoid stripping the threads). - Replace the Turret Cap
Put the outer cap back on, ensuring its zero index aligns with the scope body mark. The zero stop is now fully set.
Operation after setup – To shoot at longer distances, rotate the turret counter‑clockwise. To return to zero, rotate clockwise until it stops mechanically – your original zero is restored instantly.
